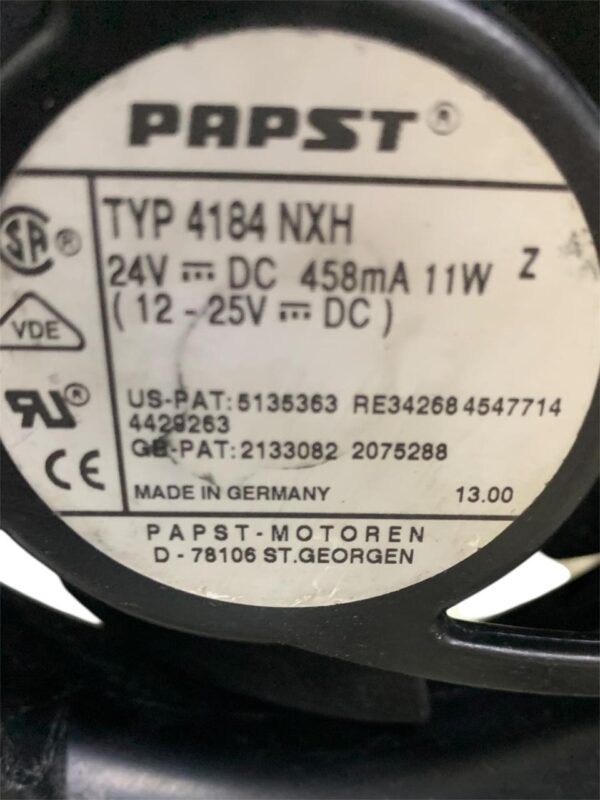

EBM-Papst 4184NXH Axial Cooling Fan – 24 VDC, 458 mA, 11 W, 4.5″ (119 mm)
- Brand: EBM-Papst
- Model: 4184NXH
- Fan Type: DC Axial Cooling Fan
- Rated Voltage: 24 V DC
- Operating Voltage: 12–28 V DC
- Current: ~458 mA
- Power Consumption: 11 W
- Fan Size: 119 × 119 × 38 mm (≈4.5″)
- Speed: 4400 RPM
- Airflow: ~139.5 CFM (237 m³/h)
- Noise Level: ~57 dB(A)
- Bearing Type: Ball Bearing
- Frame Material: Die-cast aluminum
- Blade Material: Fiberglass-reinforced polyamide
- Operating Temperature: −30 °C to 70 °C
- Approvals: UL, CSA, VDE
- Description
Description
The EBM-Papst 4184NXH is a high-performance DC axial cooling fan designed for demanding electronic and industrial cooling applications. Operating at 24 VDC with a current draw of about 458 mA, this fan delivers strong airflow while maintaining reliable and efficient performance.
Built with a die-cast aluminum frame and fiberglass-reinforced blades, the fan offers excellent durability and thermal stability. The ball-bearing motor ensures long service life and consistent operation, even in continuous-duty environments. With a compact 119 mm (≈4.5″) square frame, it is ideal for cooling power supplies, control panels, telecom equipment, and industrial electronics.
The fan operates within a 12–28 V DC voltage range, spins up to 4400 RPM, and produces strong airflow for efficient heat dissipation in tight equipment enclosures.
