Fan, Cooling, Axial, 6.5″, 48v DC, 0.5A, Comair Rotron
- Brand: Comair Rotron
- Model: JQ48SBHX
- Type: DC Axial Cooling Fan
- Voltage: 48 V DC
- Current: ~0.5 A
- Fan Size: Approx. 6.5″ (≈172 mm frame)
- Airflow: ~235 CFM (typical for JQ48 series)
- Speed: ~3475 RPM
- Bearing Type: Ball bearing
- Noise Level: ~54 dB(A)
- Construction: Aluminum frame with plastic impeller
- Operating Temperature: approx. −10 °C to 70 °C
- Mounting: 4-hole panel mount
- Description
Description

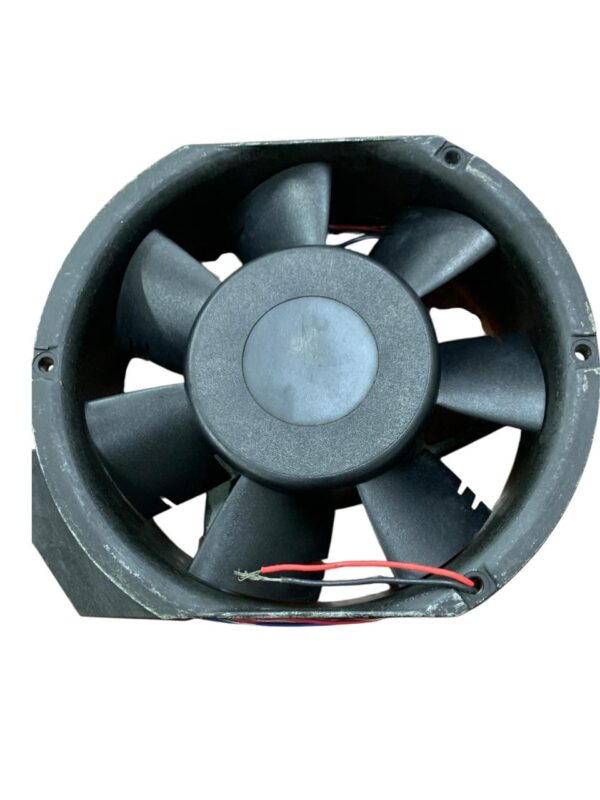

The Comair Rotron JQ48SBHX is a high-performance DC axial cooling fan designed for heavy-duty electronic and industrial equipment. Built by Comair Rotron, this fan provides strong airflow for cooling power supplies, telecommunications equipment, amplifiers, servers, and control cabinets.
This model operates at 48 VDC with approximately 0.5 A current draw, delivering powerful airflow while maintaining reliable long-term operation. Fans in the JQ48 series typically provide around 235 CFM airflow with ball-bearing construction, allowing continuous operation and long service life in demanding environments.
The fan uses a tube-axial design, meaning the blades move air parallel to the motor shaft, which is ideal for ventilating electronic enclosures and equipment racks.
