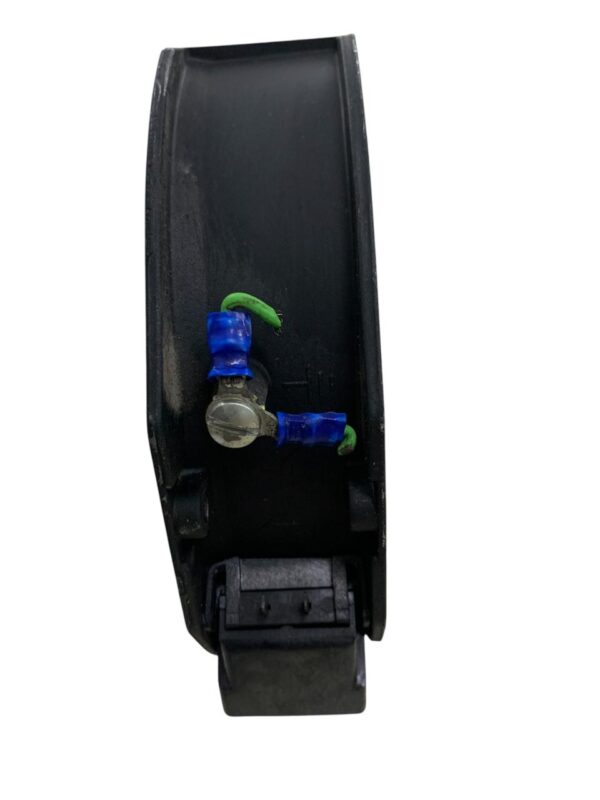

Fan, Cooling, Axial, 115v AC, 32w, 300/270 mA, 6.75″, ETRI
- Brand: ETRI
- Series: 148VK
- Type: AC Axial Cooling Fan
- Voltage: 115 V AC
- Frequency: 50/60 Hz
- Power Consumption: 32 W
- Current: 300 mA (50 Hz) / 270 mA (60 Hz)
- Speed: 2850–3300 RPM
- Airflow: approx. 211–252 CFM
- Fan Size: ~6.75″ (172 × 150 × 38 mm)
- Bearing Type: Ball bearing
- Motor Protection: Thermally protected
- Operating Temperature: −10 °C to +70 °C
- Description
Description
The ETRI 148VK Axial Fan is a heavy-duty AC cooling fan designed for ventilation and thermal management in industrial electronics, amplifiers, power supplies, telecommunications equipment, and control cabinets. It operates on 115 V AC power and provides strong airflow for maintaining safe operating temperatures in enclosed equipment.
This fan belongs to the ETRI 148 series, which features a thermally protected motor and ball-bearing design for long operational life and reliable performance. It typically runs at 2850 RPM (50 Hz) or 3300 RPM (60 Hz) while consuming 32 W of power, drawing about 300 mA at 50 Hz or 270 mA at 60 Hz.
The fan frame measures approximately 172 × 150 × 38 mm (about 6.75″), providing airflow around 211–252 CFM, making it suitable for cooling large electronic enclosures and industrial equipment.
