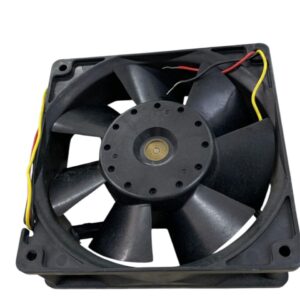

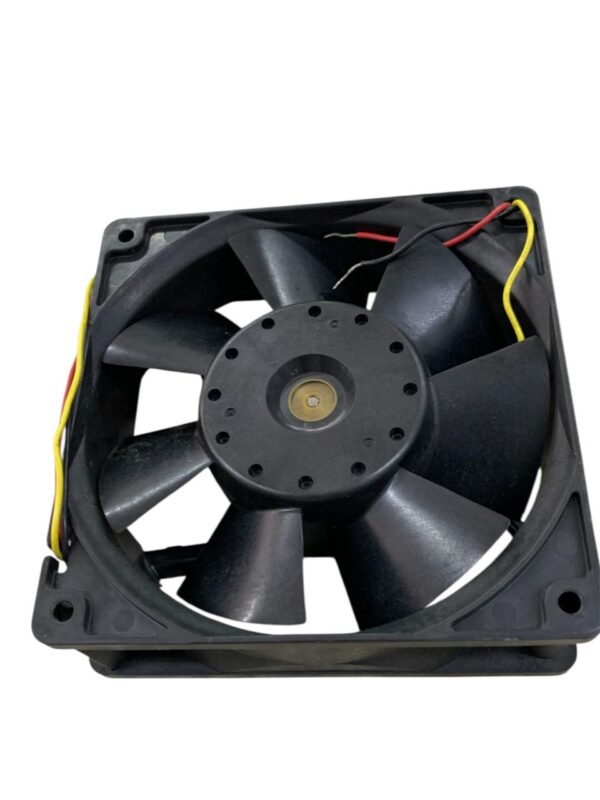

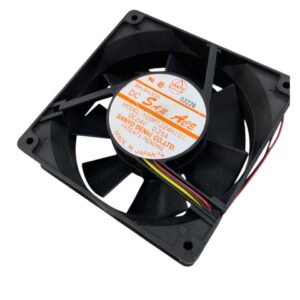

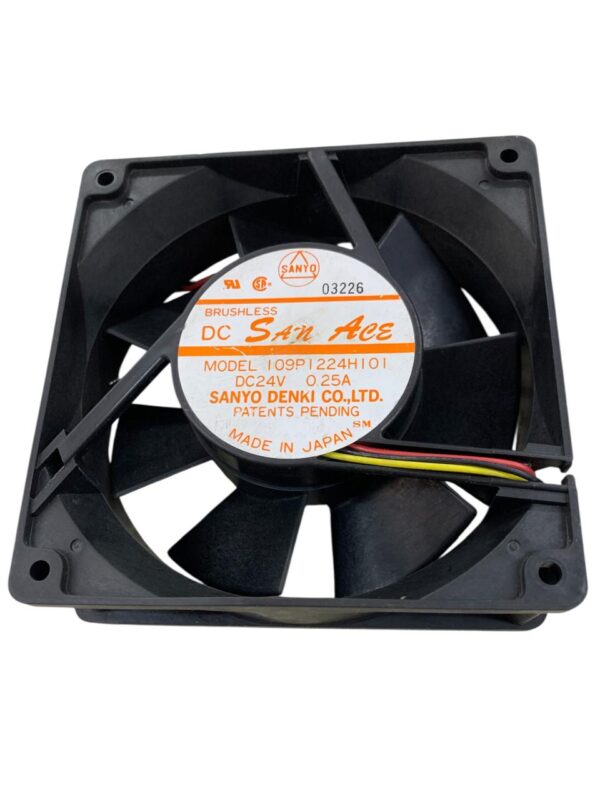

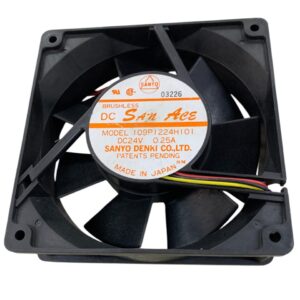

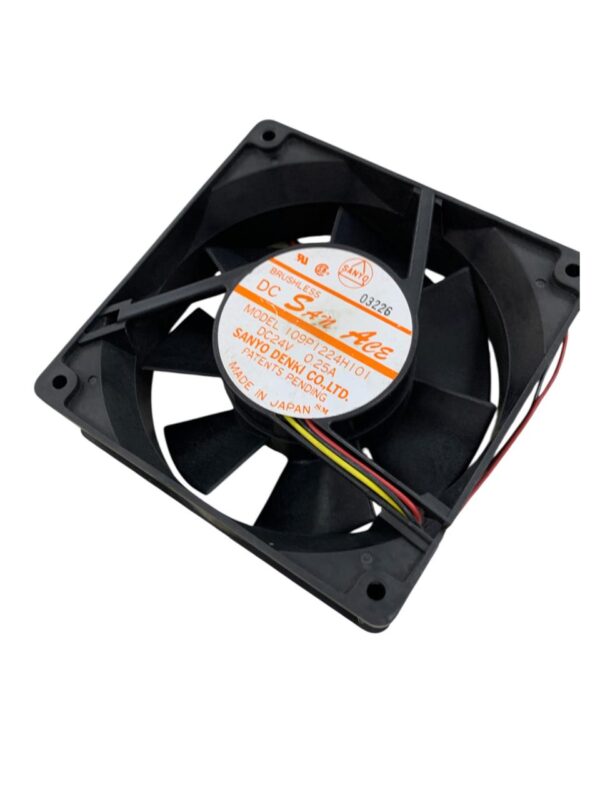

Sanyo Denki 109P1224H101 DC Cooling Fan – 24 V, 0.25 A, 4.5″ Brushless Axial Fan
- Brand: Sanyo Denki
- Model: 109P1224H101
- Type: Brushless DC Axial Cooling Fan
- Voltage: 24 V DC
- Current: 0.25 A
- Power Consumption: ~5–6 W
- Fan Size: 120 × 120 × 38 mm (≈4.5″)
- Speed: ~2600 RPM
- Airflow: ~168 m³/h (≈99 CFM)
- Noise Level: ~39 dB(A)
- Bearing Type: Ball bearing
- Connector: 3-wire / 3-pin lead
- Operating Temperature: −20 °C to +70 °C
- Description
Description
The Sanyo Denki 109P1224H101 is a high-quality brushless DC axial cooling fan designed for reliable thermal management in electronic equipment. Operating at 24 V DC with a current draw of 0.25 A, this fan delivers strong airflow while maintaining efficient power consumption.
With a 120 mm × 120 mm × 38 mm (approximately 4.5″) frame, the fan is commonly used in industrial electronics, telecom systems, servers, power supplies, and control cabinets. The fan features a ball-bearing motor, providing long service life and stable operation even in continuous-duty environments.
Typical fans in this series operate around 2600 RPM, delivering airflow close to 168 m³/h (≈99 CFM) with noise levels around 39 dB, making them effective for equipment cooling without excessive noise.
