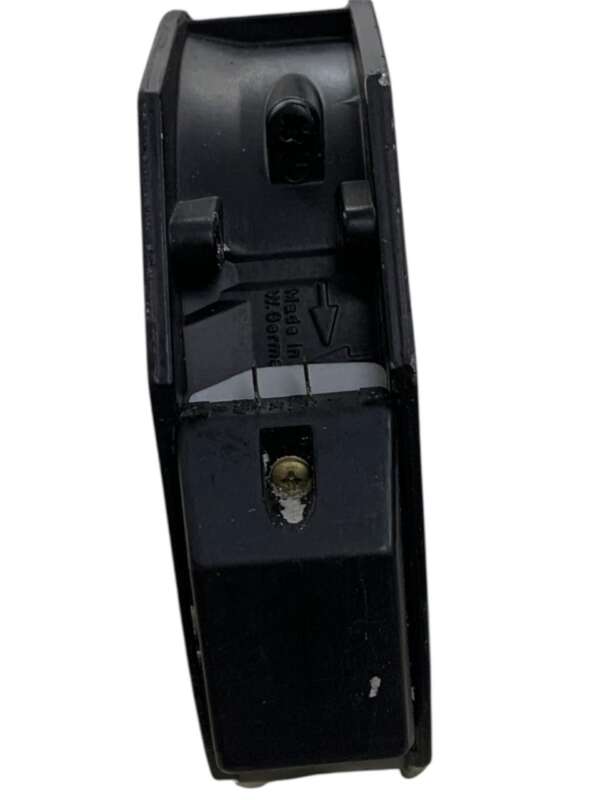

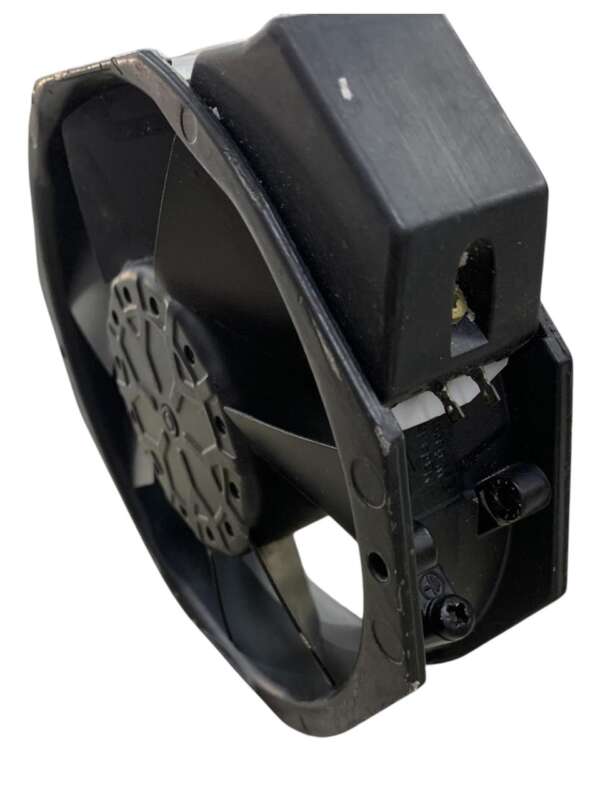

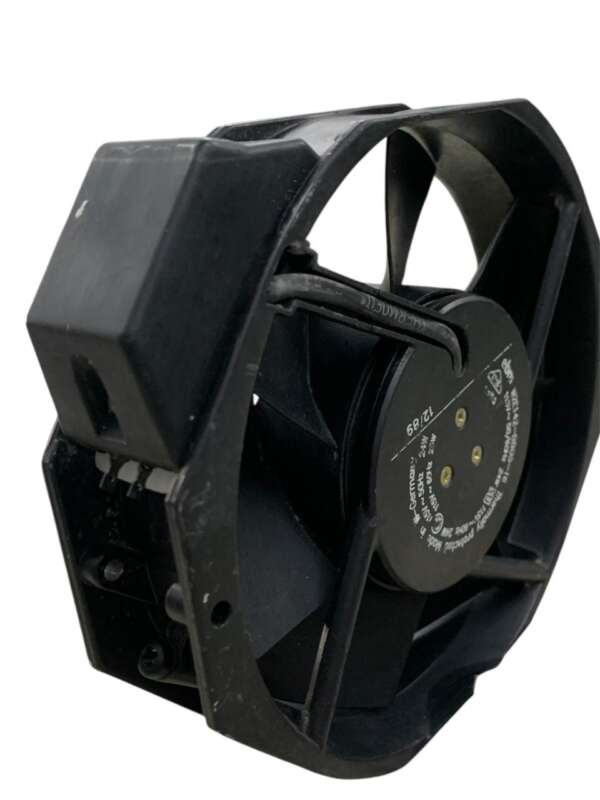

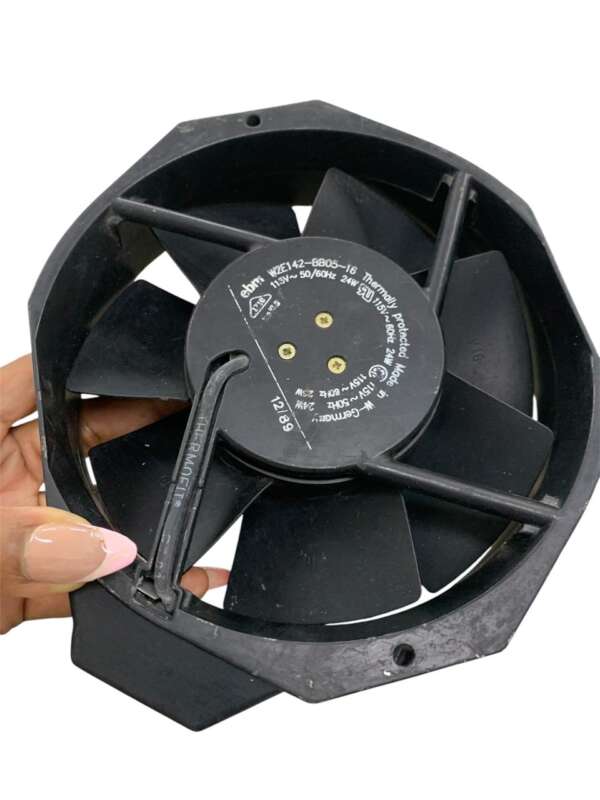

EBM-Papst W2E142 AC Axial Cooling Fan – 115 VAC, 50/60 Hz, 24–25 W, 6″ Industrial Fan
$34.95
- rand: EBM-Papst
- Series: W2E142
- Type: AC Axial / Tubeaxial Cooling Fan
- Voltage: 115 V AC
- Frequency: 50/60 Hz
- Power Consumption: ~24–28 W
- Current: ~0.24–0.25 A
- Fan Size: ~6″ class (172 × 150 × 38 mm)
- Speed: up to ~3350 RPM
- Airflow: ~230 CFM (6.44 m³/min)
- Bearing Type: Ball bearing
- Frame Material: Aluminum
- Blade Material: Metal (steel)
- Noise Level: ~57 dB(A)
- Mounting: Flange / panel mount
- Connection: 2 terminals
- Application: Industrial equipment cooling
- Description
Description
The EBM-Papst W2E142 series is a high-quality AC axial (tubeaxial) cooling fan designed for reliable ventilation in industrial and electronic equipment. Operating on 115 V AC at 50/60 Hz, this fan consumes approximately 24–28 W, delivering strong airflow for efficient heat dissipation.
With a 6-inch class frame (approx. 172 × 150 × 38 mm), this fan is widely used in control cabinets, power supplies, telecom systems, and machinery cooling. It features a ball-bearing motor and a rugged aluminum housing with metal blades, ensuring durability and long service life in continuous-duty environments.
This model is capable of producing around 230 CFM airflow at speeds up to ~3350 RPM, making it suitable for applications requiring high airflow and dependable performance.
